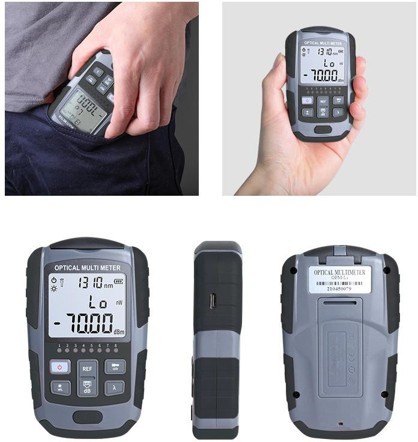

Multi-function Fiber Tester (ALK-502 Series of Handheld Optical Multi-meter)
Product Description
ALK-502 series of Optical Multi-meter, is a hand-held optical Power meter and VFL &RJ45 Cable tester integrated testers. Mainly used for continuous optical signal power measurement, optical fiber loss rate testing, optical fiber line on-off testing and RJ45 cable sequence testing. Widely used in optical cable construction and maintenance, optical fiber communication, optical cable sensing, optical CATV and other fields.

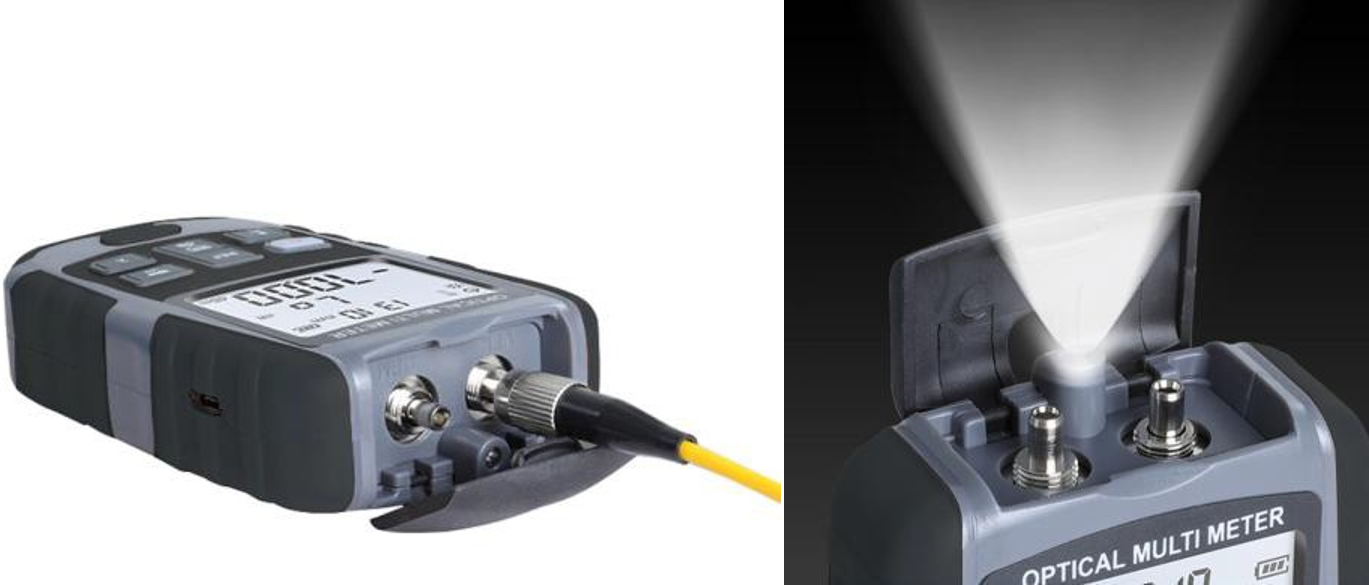

The fuselage design meets the requirements of human body function and adopts advanced thermoplastic moulding technology, which is beautiful and durable. The tester has compact shape, automatic shutdown function, three red light modes, backlight display, wavelength memory function, optical fiber identification, support user Calibration Configuration, wide test range, support lighting.
| OPTICAL POWER METER (OPM) | |
|---|---|
| Wavelength range(nm) | 800-1700nm |
| Type of Connector | Universal interface |
| Detector Type | InGaAs |
| Power measurement range(dBm) | -70~+6dBm / -50~+26dBm |
| Uncertainty | ±5% |
| Standard wavelength (nm) | 850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625, 1650nm |
| Recognizable frequency | 270Hz, 330Hz, 1kHz, 2kHz |
| Visual Fault Locator (VFL) | |
| Wavelength (nm) | 650±30nm |
| VFL (Options) | 2mw / 15mw / 30mw |
| Mode | CW/1Hz/1Hz |
| Type of Connector | Universal |
| RJ45 Cable tester | |
| Test distance | 300M |
| Others | |
| Power supply | 3.7V/700mAh (Type C Port) |
| Operating temperature (℃) | -10~+60 |
| Storage temperature (℃) | -40~+70℃ |
| Automatic shutdown time (min) | 10min |
| Battery Continuous working hours (h) | ≥120 (OPM) |
| Dimension(mm) | 110 x 68 x 27mm |
| Net Weight (g) | 130g |
| Model | Optic power meter | VFL |
|---|---|---|
| ALK-502-A1 | -70~+6dBm | 2mw |
| ALK-502-A2 | -70~+6dBm | 15mw |
| ALK-502-A3 | -70~+6dBm | 30mw |
| ALK-502-B1 | -50~+26dBm | 2mw |
| ALK-502-B2 | -50~+26dBm | 15mw |
| ALK-502-B3 | -50~+26dBm | 30mw |
