1. Product Overview
F900V is a high-performance dual-band Wi-Fi XPON ONU device developed for FTTH broadband access scenarios. It adopts mature and stable chip solution, supports GPON/EPON dual-mode automatic adaptation, integrates wired high-speed network ports and dual-band wireless Wi-Fi function. The device features stable performance, strong compatibility and complete management protocols, widely applicable to household fiber access, community broadband networking and commercial office network scenarios.
2. Core Features
- Dual-mode XPON Compatibility: Automatically adapt GPON and EPON modes, no manual mode switching required, compatible with mainstream brand OLT devices
- Dual-band Wi-Fi: 2.4GHz + 5.8GHz dual-band wireless, support concurrent connection, effectively avoid signal interference, improve network transmission speed and stability
- Complete Wired Ports: Equipped with 4 Gigabit Ethernet ports, meet multi-device wired high-speed network access demand
- Standard Management Protocols: Support OMCI, ACS, TR069 remote management protocols, convenient for operator remote configuration, maintenance and fault diagnosis
- Stable Hardware Performance: Industrial-grade hardware design, support long-term stable operation, with perfect over-current, over-voltage and heat dissipation protection
- Rich Extended Functions: Built-in USB port, support local storage sharing and extended application functions
3. Hardware Specifications

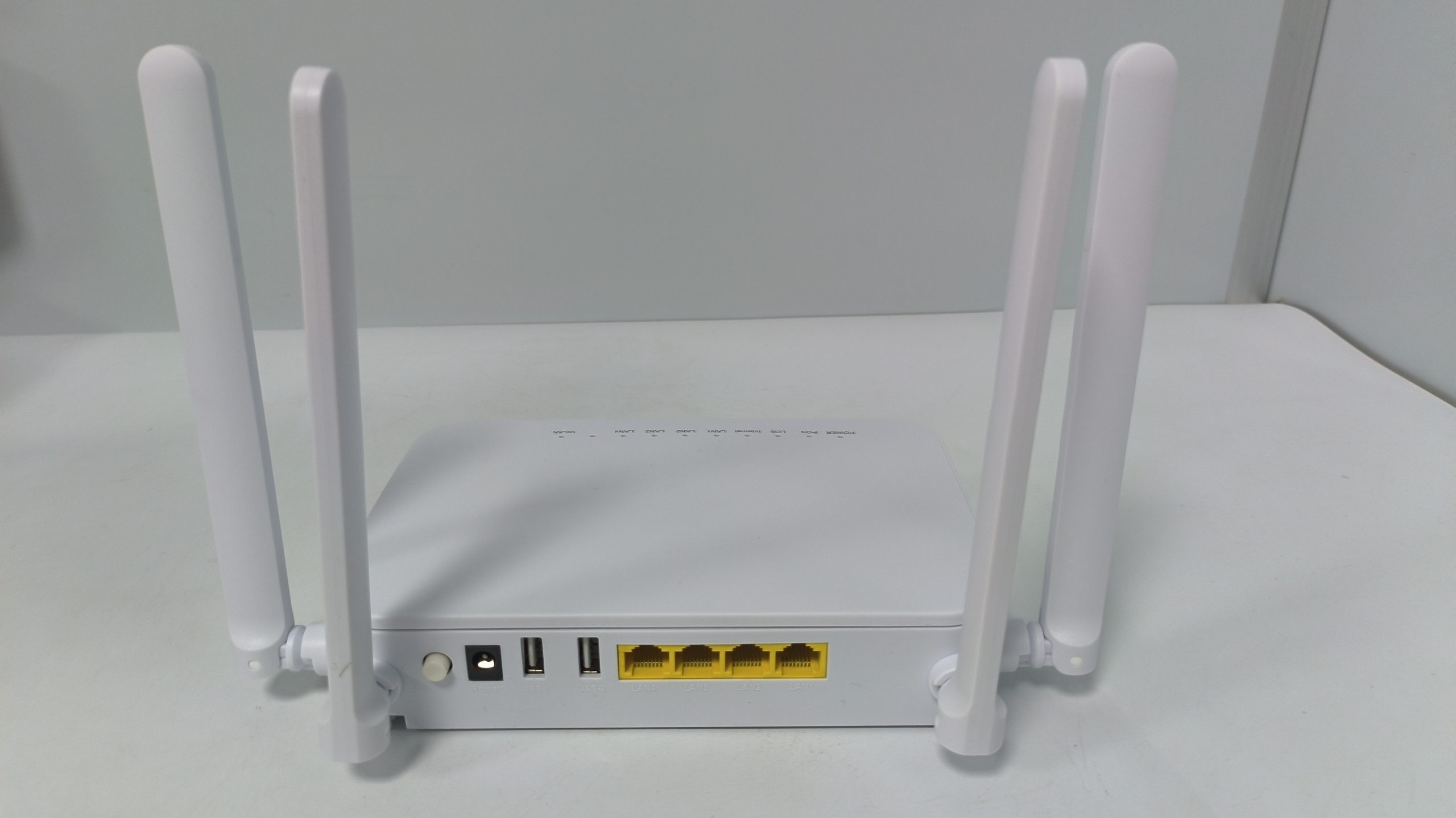

3.1 Port Configuration
| PON Port | 1 × XPON port (GPON/EPON adaptive) |
| GE Port | 4 × 10/100/1000Mbps adaptive Ethernet ports |
| USB Port | 2 × USB 2.0 ports |
| Wi-Fi Antenna | External high-gain dual-band antenna |
| Indicator Lights | Power, PON, LOS, LAN, Wi-Fi status indicators |
3.2 Optical Parameters
| GPON Standard | Compliant with ITU-T G.984 series protocols |
| EPON Standard | Compliant with IEEE 802.3ah protocol |
| Receiving Sensitivity | -27dBm ~ -3dBm |
| Transmit Power | 0dBm ~ +5dBm |
| Max Transmission Distance | 20km |
3.3 Wi-Fi Parameters
| 2.4GHz Band | IEEE 802.11b/g/n, maximum rate 300Mbps |
| 5.8GHz Band | IEEE 802.11a/n/ac, maximum rate 867Mbps |
| Wireless Security | Support WPA/WPA2/WPA3 encryption, MAC address filtering |
| Multi-user Access | Support multiple terminal devices concurrent online |
4. Software & Protocol Specifications
- Network Protocol: TCP/IP, DHCP, PPPoE, NAT, DNS, DDNS
- Remote Management: Support OMCI batch management, TR069/ACS remote automatic configuration and upgrade
- Network Functions: Port forwarding, firewall, IP filtering, wireless timing switch, bandwidth control
- Upgrade Mode: Local web upgrade + remote automatic upgrade
- System Log: Support operation log and fault record query
5. Electrical & Environmental Parameters
| Power Supply | DC 12V / 1A standard power adapter |
| Working Voltage | 10.8V ~ 13.2V |
| Operating Temperature | 0℃ ~ +45℃ |
| Storage Temperature | -20℃ ~ +70℃ |
| Working Humidity | 10% ~ 90% (non-condensing) |
| Storage Humidity | 5% ~ 95% (non-condensing) |
6. Physical Dimensions
- Appearance: Desktop miniaturized design, lightweight and easy to install
- Installation Mode: Desktop placement / wall-mounted installation
7. Application Scenarios
- Residential FTTH fiber broadband access
- Community, campus and hotel integrated network wiring
- Small office and commercial network terminal access
- Operator batch project supporting equipment
