Description
The F899V is an AC1200 dual band Gigabit Premium triple-play GPON gateway. It comes with 4 GE LAN ports, one phone port and next generation multi-stream Wi-Fi, operating simultaneously in 2.4GHz 2×2 over 802.11n and 5GHz 2×2 over 802.11ac. Based on customer requirements, the maximum 5dBi gain antennas can enhance the Wi-Fi coverage area and improve the performance.
The F899V is a premium dual-band Gigabit GPON gateway with triple AC1200 connectivity, featuring 4 GE LAN ports, one phone port and next generation multi-stream Wi-Fi operating simultaneously in 2.4GHz 2×2 over 802.11n and 5GHz 2×2 over 802.11ac. Depending on customer requirements, antennas with a maximum gain of 5 dBi can extend Wi-Fi coverage and improve performance.
Technical parameter list
Interfaces & Buttons

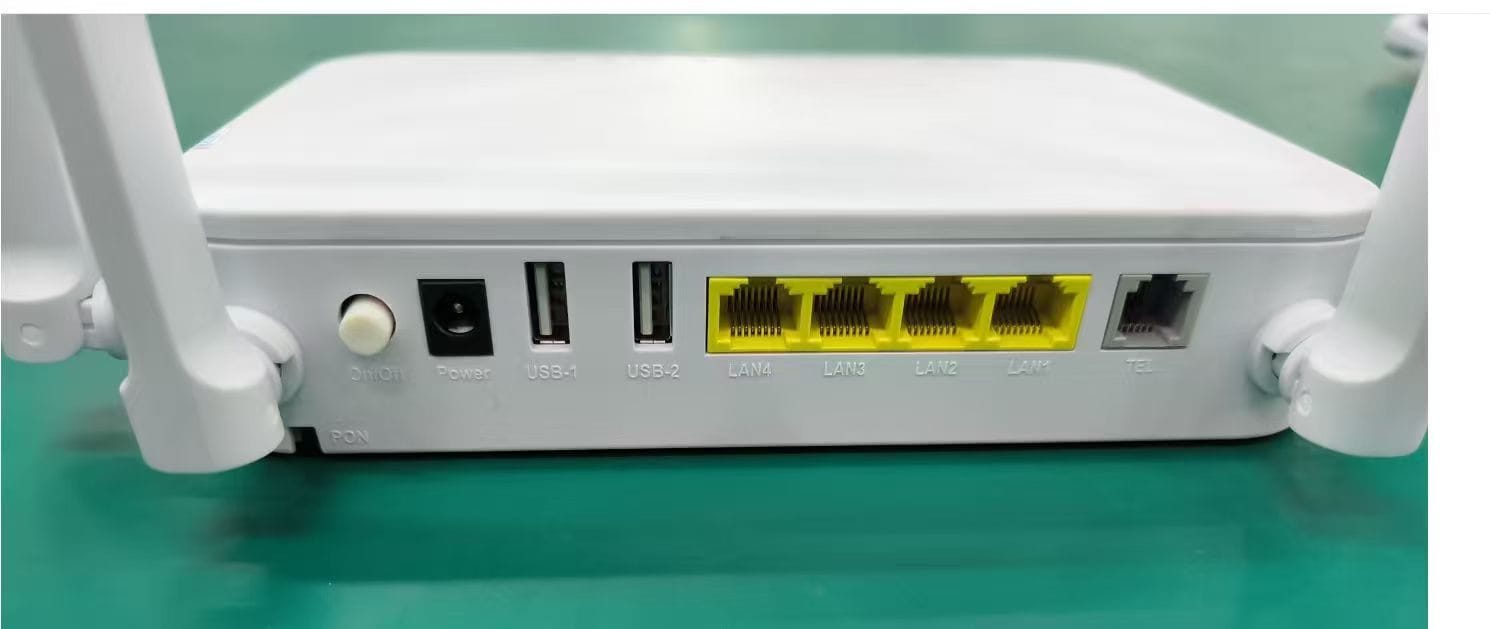

| Interfaces | 1 SC/ UPC connector for GPON / 1 SC/ UPC connector for GPON 4 RJ- 45 ports for GE interface / 4 RJ-45 ports for GE interface 1 RJ- 11 ports for VoIP / 1 RJ- 11 port for VoIP |
| Buttons | Power On/ Off / Power On/Off WPS Reset Wi-Fi / Wi-Fi |
| Antenna | External antennas |
VoIP & Wi-Fi
| VoIP | SIP ( RFC3261) Codecs: G.711 (µ-law and A-law), G.729, G.722 / Codecs: G.711 (µ-law and A-law), G.729, G.722 RTP / RTCP ( RFC 1 8 9 9 0 ) / RTP/RTCP Protocol ( RFC 1890) |
| Wi-Fi | Frequency: 2 . 4 GHz, 5GHz / Frequency: 2.4 GHz, 5GHz IEEE 802. 11a/n/ac Wi-Fi @ 5GHz(2×2) / IEEE 802. 11a/n/ac Wi-Fi at 5GHz (2×2) IEEE 802. 11b/g/ n Wi-Fi @ 2.4GHz(2×2) / IEEE 802. 11b/g/n Wi-Fi @ 2.4GHz(2×2) WPA/WPA2 Security Up to four broadcast/hidden SSIDs for each band / Up to four broadcast/hidden SSIDs for each band |
Management & Networking
| OMCI | Plug and Play: Supports remote auto-assignment of voice, broadband, multicast, and other services via OMCI protocol and TR0 6 9 without on-site configuration. / Plug and Play: Supports remote auto-assignment of voice, broadband, multicast, and other services via the OMCI protocol and TR0 6 9 without on-site configuration. |
| Networking | IPv4/ IPv6 Dual Stack / IPv4/IPv6 Dual Stack SNTP client / SNTP client NAT / ALG Static routing / Dynamic routing / Static routing / dynamic routing PPPoE client / passthrough / PPPoE client / passthrough access DNS client / relay / DNS client / repeater DHCP client / server / DHCP client / server IGMP and MLD snooping / proxy / IGMP and MLD tracking / proxy server |
| QoS | Flexible packet classification / Flexible packet classification Up to eight queues / Up to eight queues ht SP/ WRR/ SP+ WRR Ingress rate limit Egress shaping WMM (Wi- Fi Multi Media) / WMM (Wi-Fi Multi Media Interface) |
Security & Maintenance
| Security | Traffic filtering based on UNI port, VLAN ID, 802.1p, UNI+802.1p or VLAN+802.1p / Traffic filtering based on UNI port, VLAN ID, 802.1p, UNI+802.1p or VLAN+802.1p DoS attack defending / Defending against DoS attacks Multiple VPN (IPSec, PPTP) passthrough / Multiple VPN (IPSec, PPTP) passthrough MAC address filtering / MAC address filtering Broadcast / Unicast / Multicast attack protection / Broadcast / Unicast / Multicast attack protection Broadcast packet rate limit / Broadcast packet rate limit Dual image for firmware auto rollback / Dual image for firmware auto rollback firmware auto rollback |
| Management | TR- 0 6 9 / OMCI remote management / Remote management TR-069/OMCI WEB GUI management / Web GUI management Local built-in diagnostic function / Local built-in diagnostic function Logs and statistics Remote upgrade by HTTP / Remote upgrade by HTTP protocol |
Electrical & Environmental
| Electrical Characteristics | Power input : +12V1.5A / DC / Power consumption : +12V1.5A / DC Power consumption : 8 W / Power consumption : 8 W |
| Environmental Characteristics | Operating temperature: 0 °C ~ 40 °C; (32°F ~ 104°F ) / Operating temperature: 0 °C ~ 40 °C; (32°F ~ 104°F) Humidity: 5% ~ 95% ( non-condensing) / Humidity: 5% ~ 95% (non-condensing) |
