F679D GPON ONU

F679D is a high-performance dual-band Wi-Fi XPON ONU device developed for FTTH broadband access scenarios. It adopts mature and stable chip solution, supports GPON/EPON dual-mode automatic adaptation, integrates wired high-speed network ports and dual-band wireless Wi-Fi function. The device features stable performance, strong compatibility and complete management protocols, widely applicable to household fiber access, community broadband networking and commercial office network scenarios.

2. Core Features

• Dual-mode XPON Compatibility: Automatically adapt GPON and EPON modes, no manual mode switching required, compatible with mainstream brand OLT devices
• Dual-band Wi-Fi: 2.4GHz + 5.8GHz dual-band wireless, support concurrent connection, effectively avoid signal interference, improve network transmission speed and stability

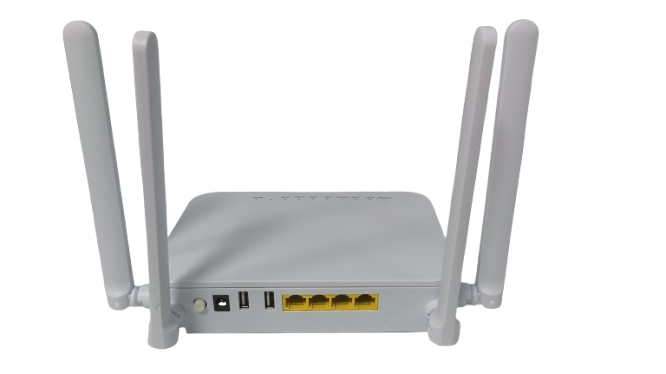

• Complete Wired Ports: Equipped with 4 Gigabit Ethernet ports, meet multi-device wired high-speed network access demand
• Standard Management Protocols: Support OMCI, ACS, TR069 remote management protocols, convenient for operator remote configuration, maintenance and fault diagnosis
• Stable Hardware Performance: Industrial-grade hardware design, support long-term stable operation, with perfect over-current, over-voltage and heat dissipation protection
• Rich Extended Functions: Built-in USB port, support local storage sharing and extended application functions

3. Hardware Specifications

3.3 Wi-Fi Parameters

• 2.4GHz Band: IEEE 802.11b/g/n, maximum rate 300Mbps
• 5.8GHz Band: IEEE 802.11a/n/ac, maximum rate 867Mbps
• Wireless Security: Support WPA/WPA2/WPA3 encryption, MAC address filtering
• Multi-user Access: Support multiple terminal devices concurrent online

4. Software & Protocol Specifications

• Network Protocol: TCP/IP, DHCP, PPPoE, NAT, DNS, DDNS
• Remote Management: Support OMCI batch management, TR069/ACS remote automatic configuration and upgrade
• Network Functions: Port forwarding, firewall, IP filtering, wireless timing switch, bandwidth control
• Upgrade Mode: Local web upgrade + remote automatic upgrade
• System Log: Support operation log and fault record query

5. Electrical & Environmental Parameters

• Power Supply: DC 12V / 1A standard power adapter
• Working Voltage: 10.8V ~ 13.2V
• Operating Temperature: 0℃ ~ +45℃
• Storage Temperature: -20℃ ~ +70℃
• Working Humidity: 10% ~ 90% (non-condensing)
• Storage Humidity: 5% ~ 95% (non-condensing)
